Porting Third Party to WebAssembly

The idea of this article is to take a more complex application (as it could exist in a C++ library) and port it to WebAssembly. In this process, the application is first compiled into native machine code and executed directly on the operating system. Then, in a second step, the same application is compiled into WebAssembly and used in a web application.

Bitmap Application

The application uses the bitmap_image.hpp by Arash Partow, which is used to work with bitmaps in C++.

#include <cmath>
#include <cstdio>
#include <cstdlib>
#include <iostream>
#include <string>

#include "bitmap_image.hpp"

void cartesian()
{
    ...
}

void fractal()
{
    ...
}

extern "C"
void build_bitmap(int choosen)
{
   switch(choosen) {
      case 1:
         cartesian();
         break;
      case 2:
         fractal();
         break;
      default:
         break;
   }
}

int main(int argc, char **argv)
{
   int choosen = 0;
   if(argc > 1)
   {
      choosen = std::atoi(argv[1]);
   }

   build_bitmap(choosen);

   return 0;
}

The application consists of two functions, cartesian and fractal, which generate different bitmaps. You can choose the respective function using the 1 or 2 as a parameter in the main function.

Before you can proceed, the program needs to be compiled. To do that, the following Makefile is used:

COMPILER      = -c++
OPTIONS       = -ansi -pedantic-errors -Wall -Wall -Werror -Wextra -o
LINKER_OPT    = -L/usr/lib -lstdc++ -lm

all: bitmap

bitmap: bitmap.cpp bitmap_image.hpp
    $(COMPILER) $(OPTIONS) bitmap bitmap.cpp $(LINKER_OPT)

valgrind_check:
    valgrind --leak-check=full --show-reachable=yes --track-origins=yes -v ./bitmap

clean:
    rm -f core *.o *.bak *stackdump *~

Which can be executed using the make command. The resulting executable file, bitmap, can now be called.

./bitmap 1
./bitmap 2

WebAssembly

Now, the Makefile can be easily modified to use the Emscripten compiler and compile into WebAssembly.

COMPILER      = -em++
OPTIONS       = -ansi -pedantic-errors -Wall -Wall -Werror -Wextra -o
LINKER_OPT    = -L/usr/lib -lstdc++ -lm -s FORCE_FILESYSTEM=1 -s ALLOW_MEMORY_GROWTH=1 -s INVOKE_RUN=0 -s EXPORTED_RUNTIME_METHODS="cwrap, callMain" -s EXPORTED_FUNCTIONS="_main, _build_bitmap"

all: bitmap

bitmap: bitmap.cpp bitmap_image.hpp
    $(COMPILER) $(OPTIONS) bitmap.js bitmap.cpp $(LINKER_OPT)

valgrind_check:
    valgrind --leak-check=full --show-reachable=yes --track-origins=yes -v ./bitmap

clean:
    rm -f core *.o *.bak *stackdump *~

If Emscripten is not installed, please refer to my other article or follow the instructions at Emscripten Documentation. For Ubuntu, you can install Emscripten with the command: sudo apt install emscripten.

This can be done using the command make -f MakefileWasm (Explicit Makefile). The resulting files bitmap.js and bitmap.wasm can be used later for the web application.

First, let’s briefly discuss the differences between the two Makefiles. The primary change is the use of a different compiler, replacing c++ with em++. Next, the output is renamed from bitmap to bitmap.js, and finally, there are various linker options (Documentation):

Web Application

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="utf-8" />
    <title>Porting Third Party to WebAssembly</title>
</head>

<body>
    <h1>Porting Third Party to WebAssembly</h1>
    <button id="create">Create Bitmaps</button>
    <canvas id="output"></canvas>
    <script src="bitmap.js"></script>
    <script src="bitmap_image.js"></script>
    <script>
        const callMainButton = document.getElementById("create");
        callMainButton.addEventListener("click", function () {
            // call build_bitmap with cwrap
            const build_bitmap = Module.cwrap("build_bitmap", "number", ["number"]);
            build_bitmap(1);

            // or the exported build_bitmap
            Module._build_bitmap(2);

            // or the main function
            // Module.callMain(["1"]);

            const canvas = document.getElementById("output");
            const ctx = canvas.getContext("2d");

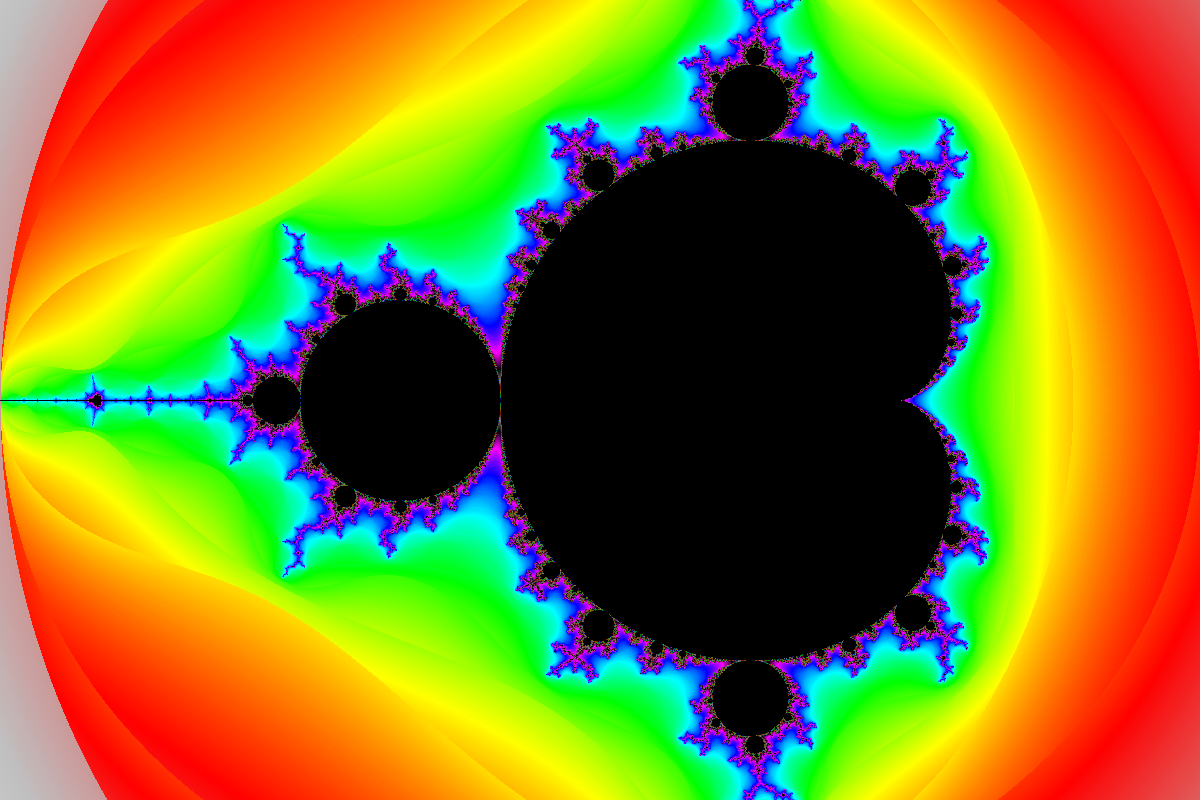

            const image = FS.readFile("./mandelbrot_set_vga.bmp");
            const bmp = getBMP(image.buffer);
            const imageData = convertToImageData(bmp);

            canvas.width = bmp.infoHeader.biWidth;
            canvas.height = bmp.infoHeader.biHeight;

            ctx.putImageData(imageData, 0, 0);

            console.log(image)
        });
    </script>
</body>

</html>

Running the script requires a significant amount of computing power and may result in a browser warning that the web application is slowing down the browser. For this example, you can safely ignore the warning.

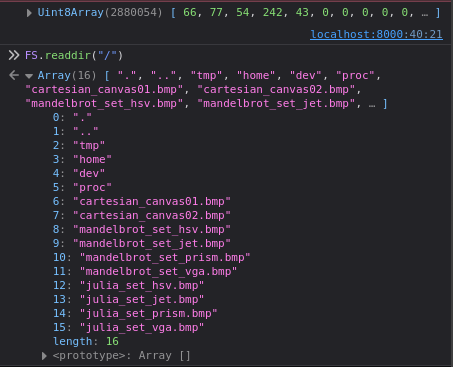

Here are some brief comments on the code: * bitmap_image.js is a helper file similar to bitmap_image.hpp that makes it easier to work with bitmaps. It assists in reading the bitmap file and later drawing it on the canvas. * The build_bitmap function can be called in three different ways, depending on the linker options: through the cwrap function, the exported build_bitmap function, or the main function. * FS.readFile("./mandelbrot_set_vga.bmp") reads the file from the virtualized file system. This is possible because the -s FORCE_FILESYSTEM=1 option is set, enabling the use of the File System API. Other commands like FS.readdir("/") are also interesting; you can see them in the console output screenshot.

Further Resources

I am open to refining, expanding, or correcting the article. Feel free to provide a feedback or get in touch with me.
